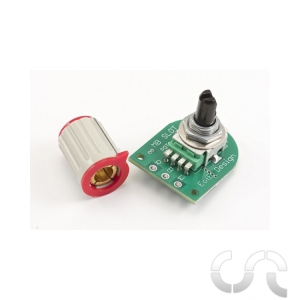

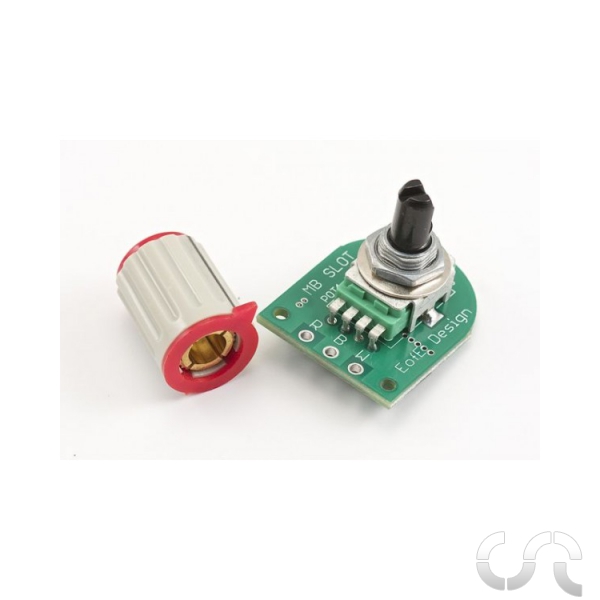

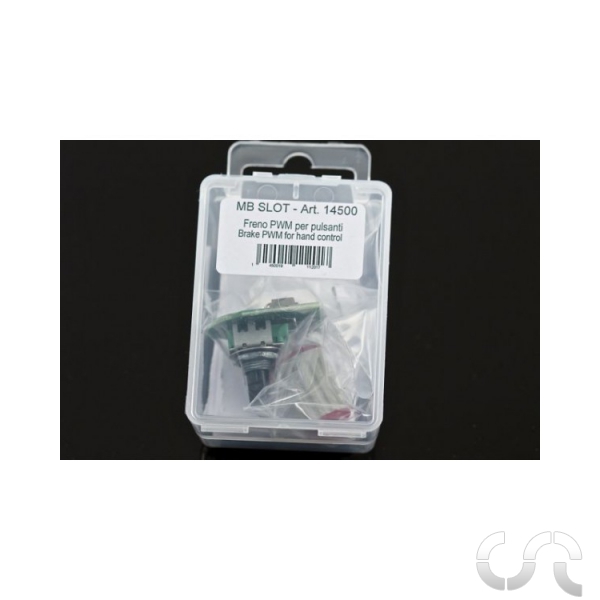

| Description: | Kit bouton de frein pour poignée de type Parma.

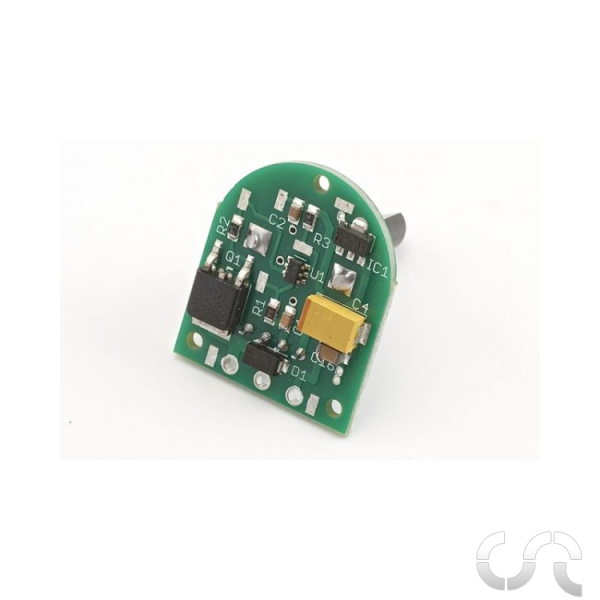

Electronic brake which can be assembled on all hand controls, both with resistor and electronic. The printed circuit is slightly bigger than a 5 watt traditional potentiometer, with potentiometer soldered directly on the printed circuit. All this in an extremely little space. The connection with the track must be with the 0V supply (Parma RED cable) as it is used in Italy and in Europe. The brake adjustment is no more controlled only by a simple potentiometer, but by a transistor Mosfet with a PWM system controlled through microprocessor and so it can be programed by the manufacturer. These Mosfet have a very small inner resistance, max value 0.002 Ohm, therefore the stop times are faster than a traditional potentiometer. In case you want to remove the brake from the model, this kind of brake allows a turning drive to be much more linear than a classical potentiometer (ABS effect). The supply tension can vary from 5Vdc to 35Vdc, braking electricity 40 Ampere.

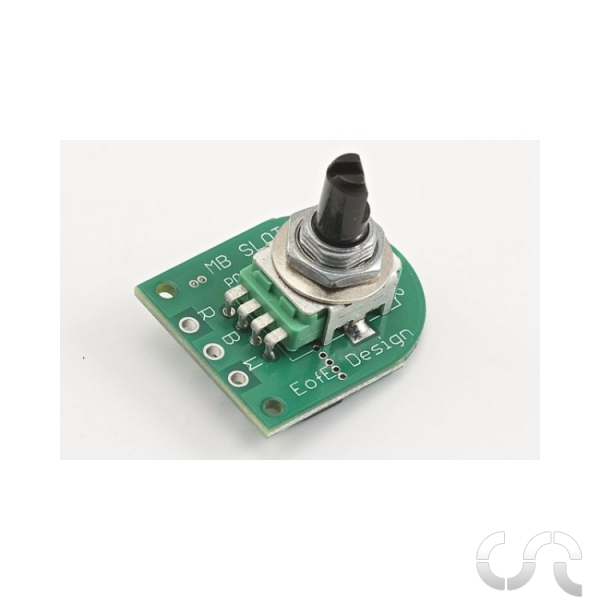

Connection to hand control R= + B= - W= brake pivot on PCB |
| Echelle: | 1/32 |
